LCM85 for Wind and Brass instruments

Article number: SD850

LCM 85 for Wind and Brass instruments

This mic can be used for different sorts of wind & brass instruments such as sax, trombone, tuba, horn, euphonium. It can be precisely positioned the way you prefer, on sax for example: further from the bell towards your left hand keys, giving more sound from the upper side of the saxophone which is perfect for classical music. The mic element itself has the same characteristics and specifications as the LCM89.
All mics are modular systems, so it is possible to combine a LDM94 element with the 85 clamps in case you prefer a dynamic element.

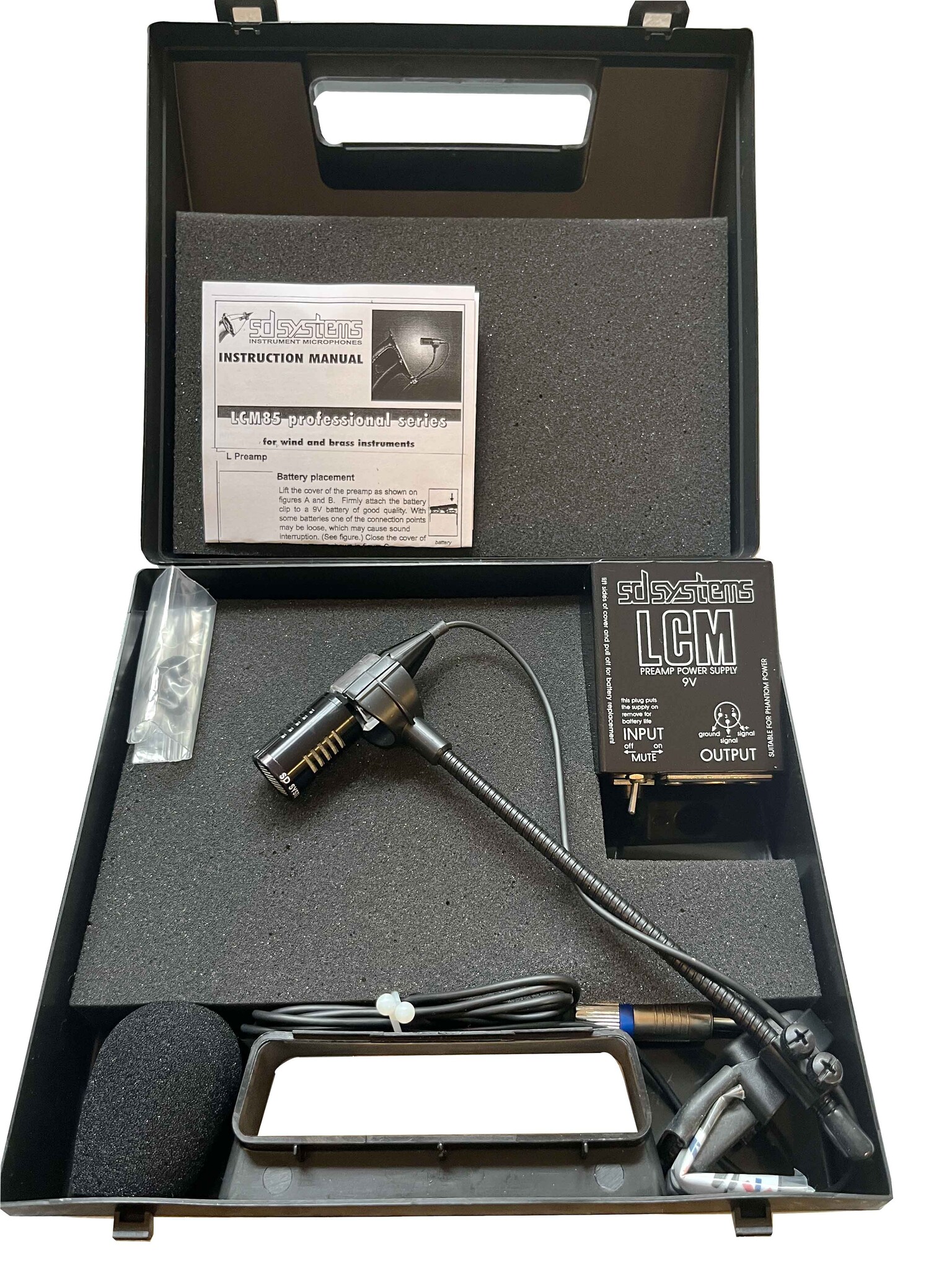

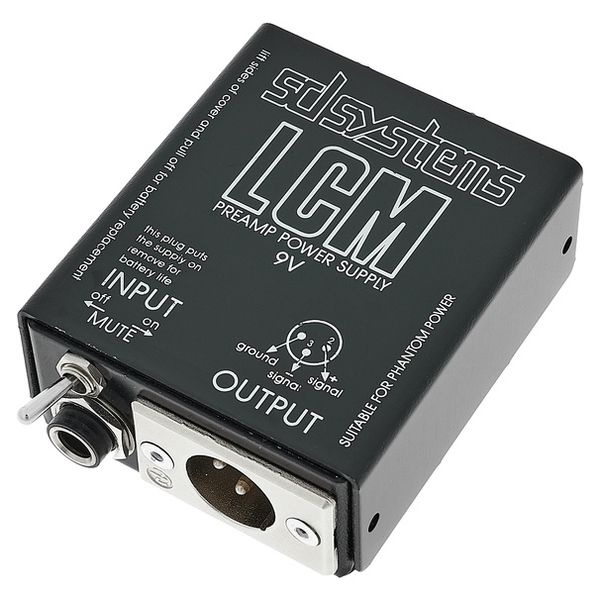

our LP preamp Standard is included.
Also available: LCM85 with Shure plug, choose on top: LCM85 with TA4F and see picture 4. (Article SD855)
and LCM85 adapted for DIGITAL wireless sets

(Same as LCM89 element):
Type: back electret condenser microphone. Polar pattern: cardioid-unidirectional. Frequency response: 20-20.000 Hz. Sensitivity at 1 kHz: -66 dB. Output impedance: 200 Ohm. Max. sound pressure level: 138 dB at 1% THD. Powering: 9 V or phantom power: 48-52 V. Current consumption: battery 0,02 mA / phantom 0,15 mA.

SEE schedule (click on left pics, mid):
compare Dynamic mics (SDSmd/LDM94) with Condenser mics (LCM85/LCM85T)

Ben Rodenburg, Holland
Oswaldo Lessa, Rio, Brazil

Manual Pdf

users read this
